Tartan 37      SPECIFICATIONS

Specifications

L.O.A. ——————————37’ 3-1/2”

Beam ——————————- 11’ 9”

Draft (CB)   Board Up ———- 4’ 2”

                      Board Down —— 7’ 9”

Draft (Fin) ————————-6’ 7”

Displacement ———————- 15,500

Ballast ——————————  7,500

Datum Waterline —————— 28’ 6”

Sailing Waterline - Point of Immersion forward to aft point of immersion—33’ +

Sail Area —————————- 625 Sq. Ft.

Berths ——————————— 6

Power:  Most were powered with the    Westerbeke 40 or Westerbeke 50 engine.

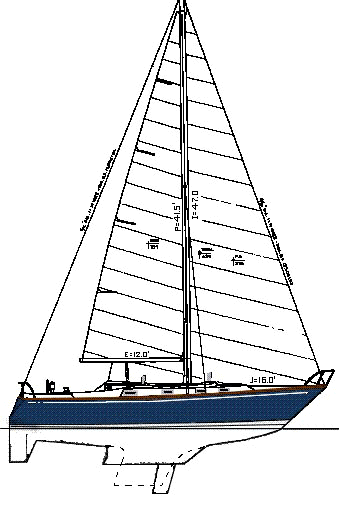

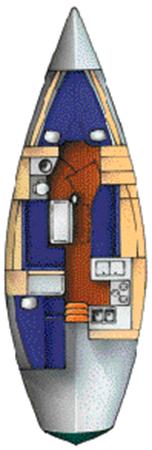

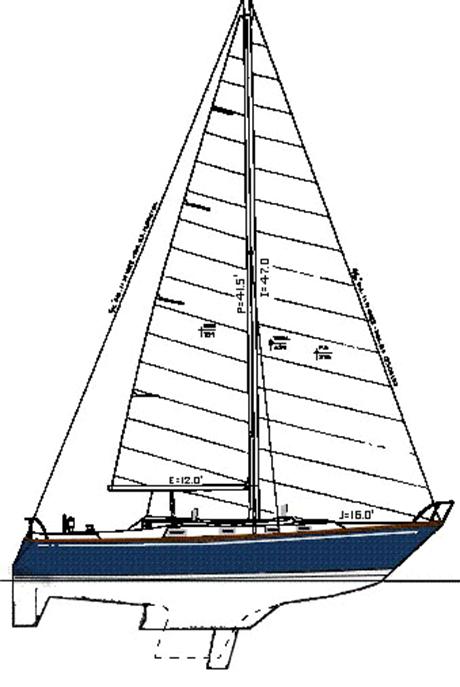

Above are color images of a Keel/Centerboard T37 in profile, and of the T37     accommodation plan. Thanks to Ray Durkee, #373 VELERA, who found these somewhere out there, floating around in the ether.

                        WESTERBEKE 50 SPECIFICATIONS

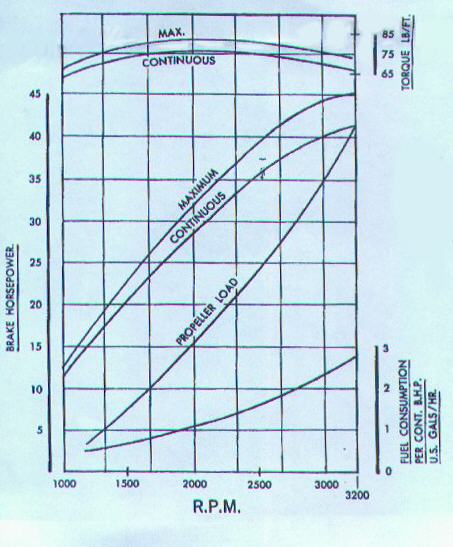

Thanks to Eric Freedman, former owner of Hull #252 KIMBERLITE, who sent along the specifications for the Westerbeke 50.  The power curves and the    written specifications appear below.

TYPE: Four cylinder four cycle overhead valve vertical in-line diesel.
DISPLACEMENT: 110 cubic inches. Bore 3 5/32", stroke 3 1/2".
POWER: 41 HP at 3200 RPM (See power curve.)
COMPRESSION RATIO: 21.47 : 1
WEIGHT: 460 lbs. basic engine.
FUEL INJECTION EQUIPMENT: CAV distributor type injection pump and CAV Pintaux nozzles working        in conjunction with Ricardo Comet V combustion chambers.
CYLINDER BLOCK AND HEAD: Special cast iron mono blocks.
CRANKSHAFT: Forged steel, counter balanced.
CAMSHAFT: Forged steel.
CONNECTION RODS: I section alloy steel stampings
PISTONS: Aluminum alloy with solid skirt.
MAIN BEARINGS: Five, tri metal, heavy duty.
LUBRICATION: Wet sump, eccentric rotor pressure pump, camshaft driven.
EXHAUST MANIFOLD: Fresh water cooled. Front or rear opening.
COOLING SYSTEM: Closed circuit system, including lube oil cooler with heat exchanger mounted.
ANGLE OF INSTALLATION: 15 degrees maximum.

ELECTRICAL SYSTEM: 12 Volt negative grounded system with 55 Amp alternator.
MOUNTING: Flexible rubber mounts on 18" centers standard.

Designer: Sparkman & Stephens
